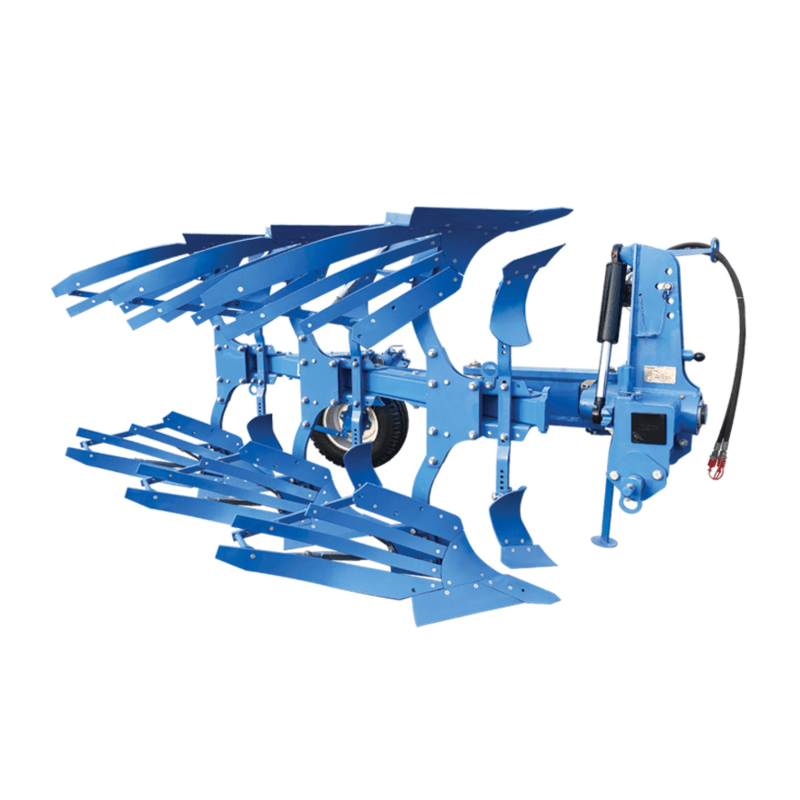

L type full suspension hydraulic tilting

  • Overview
  • Related Products


Code No. 1LF-L350 1LF-L360 1LF-L450
No.of Bottom 3 3 4(3+1)
Bottom No. LK450 grid type or LK450Z mirror type LK500 grid type LK450 grid type or LK450Z mirror type
Working Width Per Bottom 33-50cm 40-60cm 33-50cm
Plough Point High 172cm 191cm 172cm
Bottom to Bottom Size 100cm 120cm 100cm
Plough Beam Specification 120x120x12mm 120x120x12mm 120x120x12mm
Machine Working Width 99-150cm 120-180cm 132-200cm
Weight 820kg 1000kg 1300kg
Power Required 120-150HP 140-180HP 140-180HP

01.jpg02.jpgHe3946ba2c3a9496e86f76771aad747f7Z.jpgH445188f09c27469db8670116ea0656fbJ.jpgH77e0a3616eba430292103a6b0370c24d9.jpg
